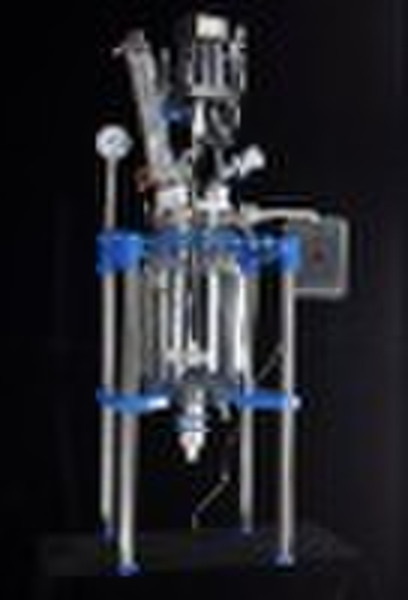

Jacket Glass Reactor 5L with Condenser & Funne

Description: Jacket glass reactor is an ideal instrument for pharmacy, biology, fine chemistry and material synthesis. With menstruum in inlayer and heating or cooling source in interlayer, jacket glass reactor can perform synthesis, distillation, separationand reflux under airproof condition. Features: 1. AC Induction Motor with Stepless speed regulation, no dynamo brush, spark-free; 2. G3.3 Pyrex Glass (Borosilicate) with good physical and chemical properties; 3. Efficient Vertical Condenser (0.30 sqm condensing area); 4. Stainless Steel Connector, easy to unload for discharge and clean; 5. PTFE Five-mouth Airproof Rector Lid for diversified needs of reaction; 6. Special designed PTFE propel valve with stainless steel fastener (Easy to unload and resist to erosion); 7. No dead angle at the bottom; 8. Epoxy Painting for Anti-Erosion Structure is optional; 9. Explosion (Flame) Proof devicesare optional. Technical Information: ModelJR - S5Volume(L)5LGlassware MaterialBorosilicate (Pyrex: G3.3)Frame MaterialSUS304Diameter of Vessel Lid (mm)180 mmMouth Amount of Vessel Lid5Stirring Power (w)90 wSpeed AdjustmentElectronic SteplessRotary Speed (rpm)50 1200Reaction Temperature Range (°C)-80 180°CThermometer TypeThermometerSeal TypeCeramic MechanicalReachable Vacuum Level (Mpa)≥ 0.095MPaStirring Head TypeArcMaterial Of Stirring BarStainless Steel & PTFE SleeveCondenser Type & Area (sqm)Vertical (0.30)Continuous Charge FunnelYesPTFE Graduated Charge ValveYesDischarge ValvePTFE Propel (Teflon)Discharger PositionBottomDimensions (cm)40*50*110Power220V/5AExtra Component (Optional)Epoxy PaintingExtra Component II (Optional)Explosion (Flame) Proof Parameterof Glassware: Borosilicate (Pyrex: G3.3)Chemical Composition (Weight%)SiO2 80.7B2O5 12.8 Al2O3 2.2CaO <0.6K2O Na2O 4.0Parameters Linear Expansivity a≤32*10^(-7) Thermal Shock Resistance (°C) 270 Softening (°C) 820Anneal (°C) 565Highest Temperature (°C) Continuous Use (°C) 510 Explosion Proof(Flame Proof) Technical Information: BXM(D) Serial Explosion Proof Distribution BoxExplosion Proof MarkEXdeIIBT6, ExdellCT6Rated Voltage AC380V/220V/50HzMain Reflux Rated Voltage 60A-250AProtection Level IP54, IP55Anti-erosion Level WF1 1. Aluminum alloyed shell with polyester powder painted on surface by high voltage static electricity; 2. In-built high rupture circuit breaker and Frequency converter; 3. Modular Design for customized need on circuits (Flameproof Structure of Switch Box, Increased Safety Type of Bus-bar Chamber and Terminal Box); 4. Protection from overload or short-circuit. For details, please contact us. Based on your needs, we will customize Jacket Glass Reactor, equipped with vacuum pump, heatingsystem, cooling system, and control system.
