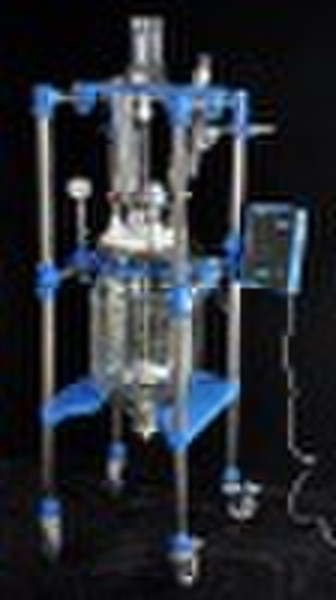

Jacket Glass Reactor 10L with Condenser & Funn

Description: Jacket glass reactor is an ideal instrument for pharmacy, biology, fine chemistry and material synthesis. With menstruum in inlayer and heating or cooling source in interlayer, jacket glass reactor can perform synthesis, distillation, separationand reflux under airproof condition. Features: 1. AC Induction Motor (Gear Down), no dynamo brush, spark-free; 2. Frequency Conversion speed adjustment; 3. G3.3 Pyrex Glass (Borosilicate) with good physical and chemical properties; 4. Efficient Integrated Dual Reflux Condenser (0.60 sqm condensing area); 5. Stainless Steel Connector, easy to unload for discharge and clean; 6. PTFE Five-mouth Airproof Rector Lid for diversified needs of reaction; 7. Continuous Charge Funnel, PTFE Graduated Charge Valve, Solid Material Charge Funnel, and PTFE Multifunctional Valve are equipped; 8. Special designed PTFE propel valve with stainless steel fastener (Easy to unload and resist to erosion); 9. No dead angle at the bottom; 10. Epoxy Painting for Anti-Erosion Structure is optional; 11. Explosion (Flame) Proof devices are optional. Technical Information: ModelJR - S10Volume(L)10LGlassware MaterialBorosilicate (Pyrex: G3.3)Frame MaterialSUS304Diameter of Vessel Lid (mm)265 mmMouth Amount of Vessel Lid5Stirring Power (w)90 wSpeed AdjustmentFrequency ConversionGear Down3:1Rotary Speed (rpm)50 600Reaction Temperature Range (°C)-80 180°CThermometer TypePT100 ThermometerSeal TypeCeramic MechanicalReachable Vacuum Level (Mpa)≥ 0.095MPaStirring Head TypePropellerMaterial Of Stirring BarStainless Steel & PTFE Sleeve/GlassCondenser Type & Area (sqm)Integrated Dual Reflux (0.60)Continuous Charge FunnelYesPTFE Graduated Charge ValveYesSolid Material Charge FunnelYesPTFE Multifunctional ValveYesDischarge ValvePTFE Propel (Teflon)Discharger PositionBottomDimensions (cm)55*52*140Power220V/5AExtra Component (Optional)Epoxy PaintingExtra Component II (Optional)Explosion (Flame) Proof Parameterof Glassware: Borosilicate (Pyrex: G3.3)Chemical Composition (Weight%)SiO280.7B2O512.8 Al2O32.2CaO<0.6K2O Na2O4.0Parameters Linear Expansivity a≤32*10^(-7) Thermal Shock Resistance (°C) 270 Softening (°C)820Anneal (°C)565Highest Temperature (°C) Continuous Use (°C) 510 Explosion Proof(Flame Proof) Technical Information: BXM(D) Serial Explosion Proof Distribution BoxExplosion Proof MarkEXdeIIBT6, ExdellCT6Rated VoltageAC380V/220V/50HzMain Reflux Rated Voltage60A-250AProtection LevelIP54, IP55Anti-erosion LevelWF1 1. Aluminum alloyed shell with polyester powder painted on surface by high voltage static electricity; 2. In-built high rupture circuit breaker and Frequency converter; 3. Modular Design for customized need on circuits (Flameproof Structure of Switch Box, Increased Safety Type of Bus-bar Chamber and Terminal Box); 4. Protection from overload or short-circuit. For details, please contact us. Based on your needs, we will customize Jacket Glass Reactor, equipped with vacuum pump, heatingsystem, cooling system, and control system.
